Cassette Lift K70

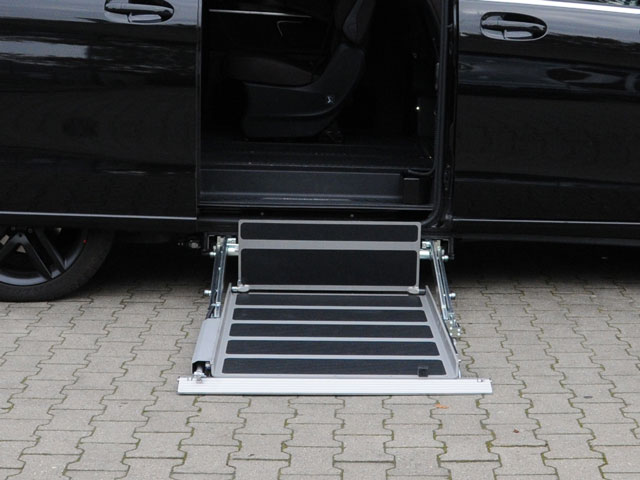

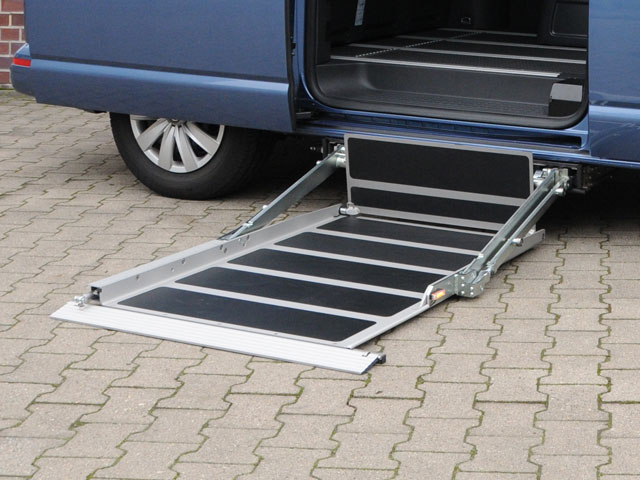

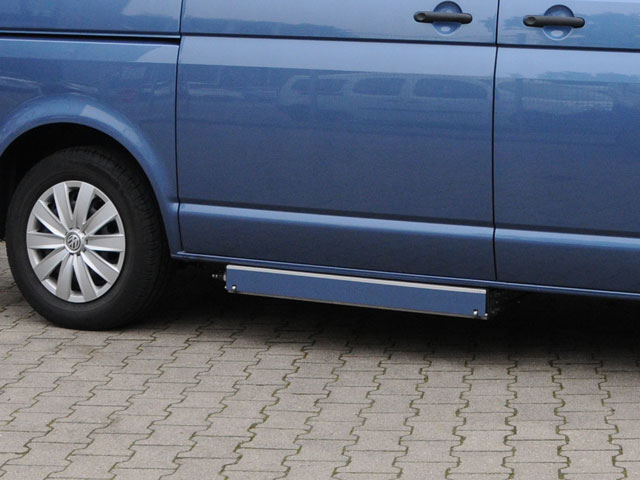

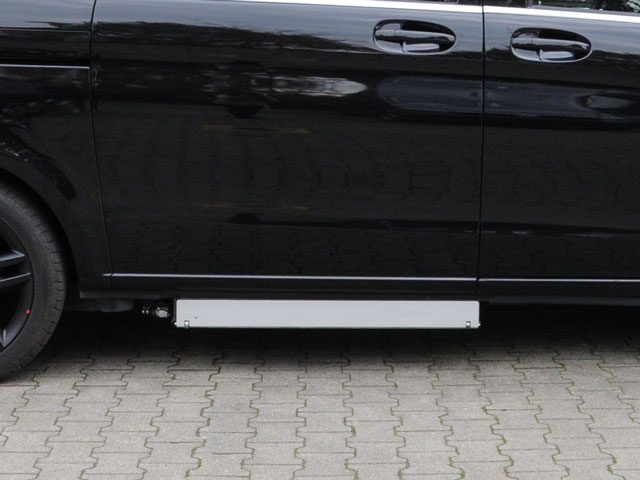

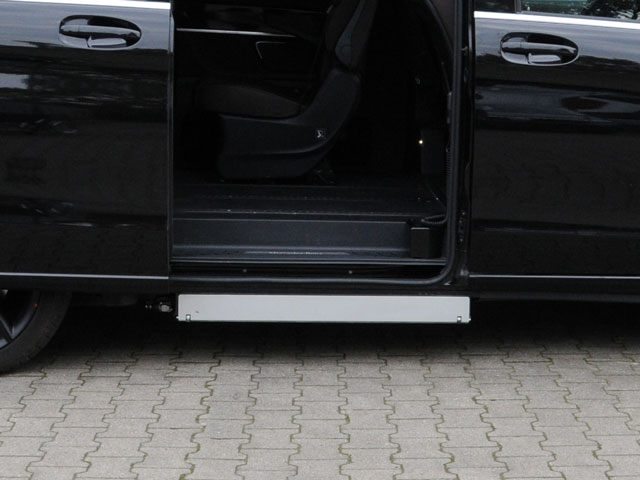

At just 70 mm high, this extremely flat underbody lift is the slimmest available on the market. The K70 cassette lift is perfect for private vehicles. It does not affect access or use of the passenger compartment as the cassette is mounted below the vehicle to one side. The electric roll-off safety barrier also works where the road is uneven or covered with snow. It also serves as a roll stop for the wheelchair user during the lifting and lowering process. The wheelchair lift is equipped with LED signals, which are particularly helpful when there is poor visibility. As an option, the lift is available with a lateral platform.

On vehicles with up rated suspension for poor roads or four-wheel drive and a chassis of at least 17", the original tank can be retained. This now also applies to vehicles with petrol engines.



 THESE FACTS MAKE ALL THE DIFFERENCE

  • Load capacity 300 kg
  • Ultra-slim design (only 70 mm) guarantees ultimate ground clearance
  • New illuminated controls, waterproof and shockproof
  • Refined lifting platform by anodised surface finish
  • Smooth operation of lifting platform
  • Large lifting platform, suitable for electric wheelchairs
  • Automatic roll-off safety barrier also operates on uneven road and snow
  • LED flashing lights
  • Enclosed stainless steel box provides protection for the lift system even in extreme weather conditions
  • No changes to the car body necessary
  • Original step is retained, vehicle interior remains unchanged
  • Manual emergency operation
  • EMC tested according to EU regulations

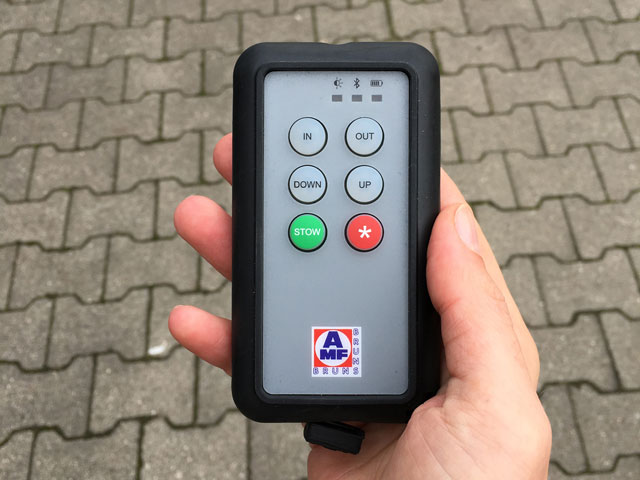

  • Optional: Bluetooth remote control or app operation (iOS, Android)


Product film

PRODUCT SHEET (DOWNLOAD)

VOLKSWAGEN T6



PRODUCT SHEET (DOWNLOAD)

MERCEDES-BENZ

V-CLASS / VITO
